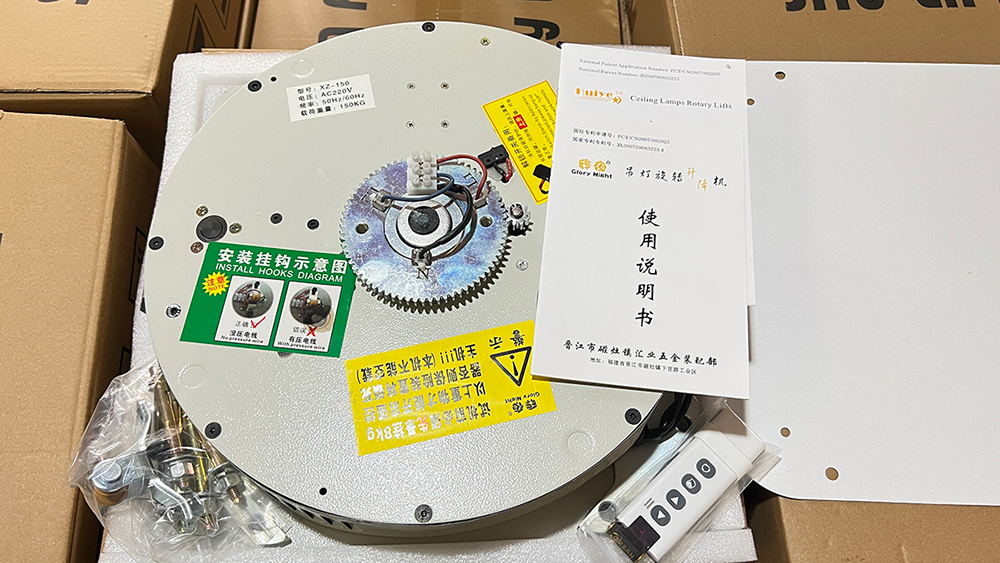

辉夜吊灯升降机150KG

辉夜吊灯升降机150KG

产品详情


产品简介
技术领域:本技术涉及一种能使吊灯具有旋转升降功能的旋转升降式吊灯器。
背景技术:传统的吊灯一般固定悬挂于空间较高厅堂的顶棚,呈静态设置,比较呆板,由于高空悬挂,维护清洗或者更换灯泡更为困难。
发明内容:本技术的目的是为了解决上述背景技术存在的不足,提供一种使吊灯具有旋转和升降式吊灯器,使其配套的吊灯具有动态效果,又便于维护或更换灯泡。
本产品新型实用,结构简单,使用方便,吊灯工作时,能够旋转,使配套的灯饰具有动感效果,需要维修时,能够升降,便于维护清洗和更换灯泡,由遥控操作完成,特别适用于大型室内空间使用。
Overview
Technology areas: the utility model patents related to a chandelier with rotating movements canfunction in rotation with chandelier–style movements.
Technical background: the traditional chandelier in the general fixed hoisted high Hall of theroof space, a static setting, relatively inflexible, because high–altitudehoisted, the maintenance of cleaning or replacement of the lamp moredifficult.
Invention: the utility model patents are intended to address the above background of the lackof technology and provide a rotation with the chandelier-style chandeliers andmovements, to support the dynamic effects of the chandeliers, easy to maintain orreplace bulbs.
This new product practical, simple, easy to use, chandeliers work, we can rotate so thatthe matching of dynamic lighting effects, in need of repair, we can take–off and landing, easyto maintain cleaning and replacement of light bulbs, especially for large indoor space.

安装说明:
Installation instructions
1、机台天棚安装,四个角处定点位。
The setting points of four horns for ceiling installation
2、按定点孔位固定好膨胀螺栓。
Fix the expansion bolts in the setting points.
3、吊灯旋转升降机对上天棚膨胀螺栓锁紧Fix the lamps rotary lifts on the ceiling with expansion bolts.
4、将机台下部的旋转齿轮上锁紧吊钩。
Lock the hook on the rotating gears under the machine.
5、接通吊灯旋转升降机的外线电源。
Turn on the power of the lamps rotary lifts.
6、必需悬挂8kg以上重物,方可按启遥控器下降地面。
Pressing the start button on the remote controller is alloweduntil more than 8 kg of weight is suspended.
7、取下悬挂重物换上灯具上升。
Replace the weight with lamps and raise the lamps.

电器接线与注意事项:
1、装吊灯旋转升降机的接线盒,按接线图把输入端电源(AC220V)火线,零线,接下线逐条对应连接;
2、灯具电源线与吊灯旋转升降机下导电盘连接,按接线图连接;当灯具的功率较小时,应把灯具火线接在L1;灯具的功率大时有多股火线,可将其平分为两组线分别接入L1,L2中;
3、接线时应保证每股裸露电线全部在对应的接线柱里,不会接触到周围的金属导体,避免灯具漏电不发生安全事故。
4、接线过程的压线螺钉必须重新逐个检查并接锁紧,确保接线不会松弛,脱离接线柱,避免触电断路发生不安全事故。


Electric appliances wiring and notes
a) Connect the live wire and neutral wire of the input power with corresponding wire connecting terminals on the lift's terminal box according to Fig.4.
b) Connect the lamp's power wires with the conductive plate according to Fig.5. Connectthe lamp's live wire to terminal L1 when its power is low. Lamps of great power requirementwould have more than one live wire. Divided the live wires into two strands and connectthem to terminal L1 and L2.
c) Ensure every bare wire is connected to their corresponding terminal, not in contact with theconductors around to avoid leakage.
d) Ensure that all the wire connectors have been tightened so as to avoid loose connection.
